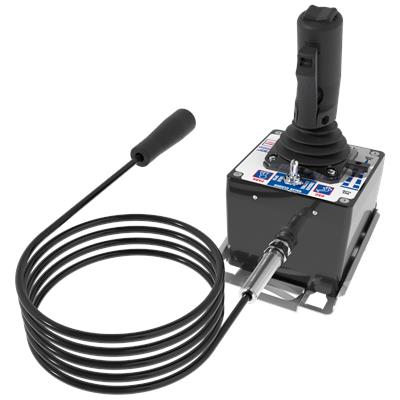

Y4E-JS-GT Joystick Operator Station

The Y4E-JS-GT Joystick Operator Station is designed for Task Force Tips Monsoon, Hurricane, Typhoon, Tsunami, EF1, and Tornado series remote control monitors. The joystick is mounted in an enclosure with horizontal rotation, vertical elevation, and nozzle stream pattern momentary trigger button control. The control requires 12 or 24-volt DC power. You can buy the EF1 Monitor here. Please contact the e-Fire Sales Team for info/pricing on any of the other remote control monitors.

The enclosure includes push button switches to program and control programmable park and oscillate functions and a toggle switch to control an optional Task Force Tips valve with an interface box. A ten-foot long, four-conductor cable with a four-pin plug shall be supplied, for connection to the included four-pin receptacle. The joystick control can be removed from its box and mounted into a console.

The joystick enclosure box also includes a circuit board to communicate with the Task Force Tips Tornado remote control monitor and optional valve interface. Internally mounted switches are included for the ability to choose which control station shall be dominant where additional controls are used, and to retain oscillate programming if desired. A storage bracket for the handheld control is also included and complies with NFPA 1901 Section 14.1.11. The unit comes with a plug but no receptacle.

The unit has a unique serial number and is covered by a five-year warranty from Task Force Tips.
