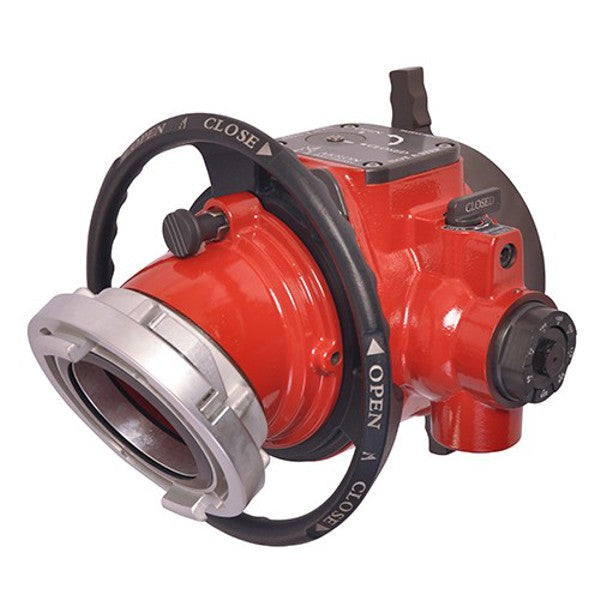

Akron Brass Revolution Intake Valve 7982

The Akron Brass Revolution Intake Valve has a compact design that saves valuable space on your pump panel. The Revolutionary handwheel blends in with the body and will not obstruct surrounding equipment on the pump panel, improving the operating environment for your whole firefighting team. The valve includes a swivel elbow inlet and a 5" Storz inlet.

Easy to Operate
Akron Brass valves provide years of hassle-free operation. Easily grab and adjust this fire truck intake valve for simple, easy operator control. Because it utilizes a ball sector for controlling water flow, the Revolution is reliable and robust. Its aluminum and stainless-steel valves are designed for efficiency.

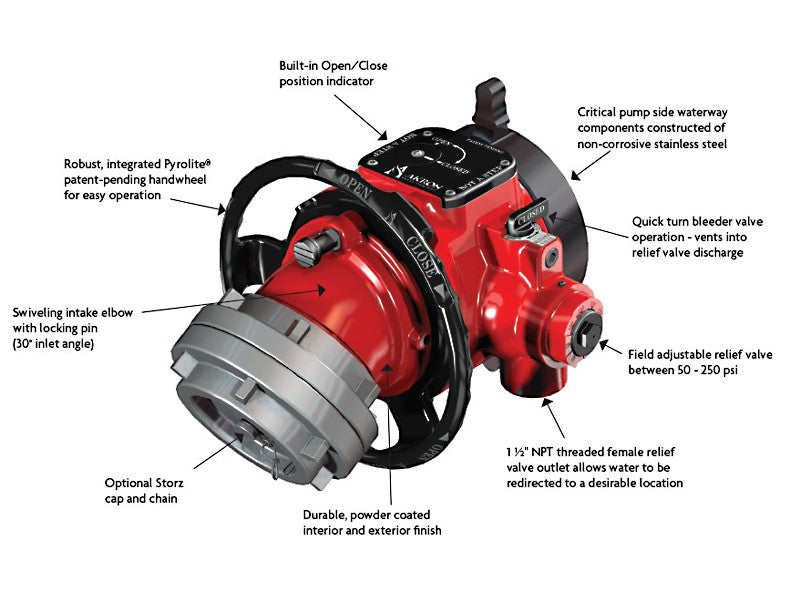

Features:

• Swiveling intake elbow with locking pin (30° inlet)
• Robust, integrated, Pyrolite patent-pending handwheel for easy operation
• Critical pump side waterway components constructed of non-corrosive stainless steel
• Durable, powder-coated interior and exterior finish
• Optional Storz cap and chain
• Field adjustable relief valve between 50–250 psi (requires 7/8” wrench to adjust). Includes 1 ½” NPT female thread so the hose can be connected to redirect water to a desirable location
• Quick-turn Bleeder valve operation (vents into relief discharge)
• Built-in open/close position indicator on top of the valve
• 2000GPM max flow
• All intake valve parts that stay in contact with water are constructed of stainless steel
• Field–serviceable design
• NFPA 1901 compliant
• 10-year, heavy-duty warranty from Akron Brass against manufacturing defects and corrosion

Dimensions:

• 4”-6” Inlet options (threaded or Storz)
• 5”-6” long handle or rocker lug outlet options (long handle only available on 6")
• Style 7982 - 12.5” x 14” x 14.875”” (318mm x 356mm x 378mm)
• Pressure relief adjustable between 50-250psi
• 250 psi operating pressure
• 7psi friction loss @ 2000gpm
• 40 lbs (18.1 kg)
